Wilkinson machine heads for guitar

article number: WJ-28N/CR

product id: 40732

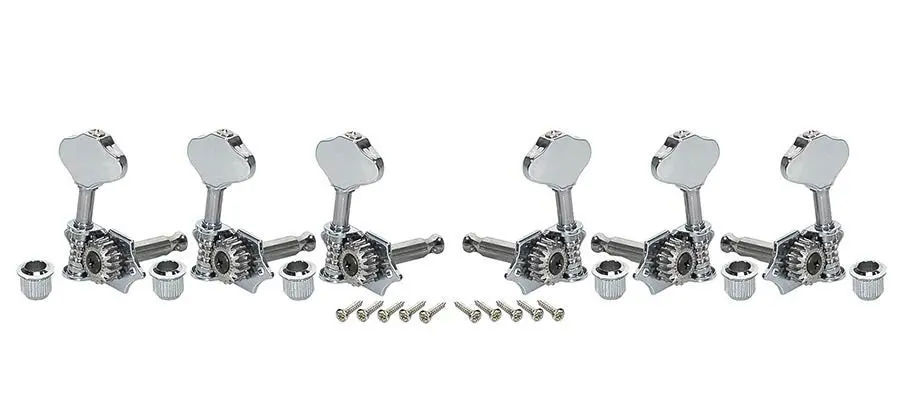

machine heads for guitar, open geared, 3x left+3x right, chrome, ratio 1:19

These Wilkinson machine heads are designed for solid headstocks. With the gear ratio of 1:19, finetuning has become very easy. These machine heads are also available for slotted headstocks: WJ-28N-CRS

specifications

butterbean keys

baseplate length: 34mm

baseplate width: 16,5mm

shaft to string hole: 22mm

shaft thickness: 6mm

bushing width: 9mm (8 mm hole required)

bushing length: 9,6mm

bushing overhang headstock: 11mm

finish: chrome
